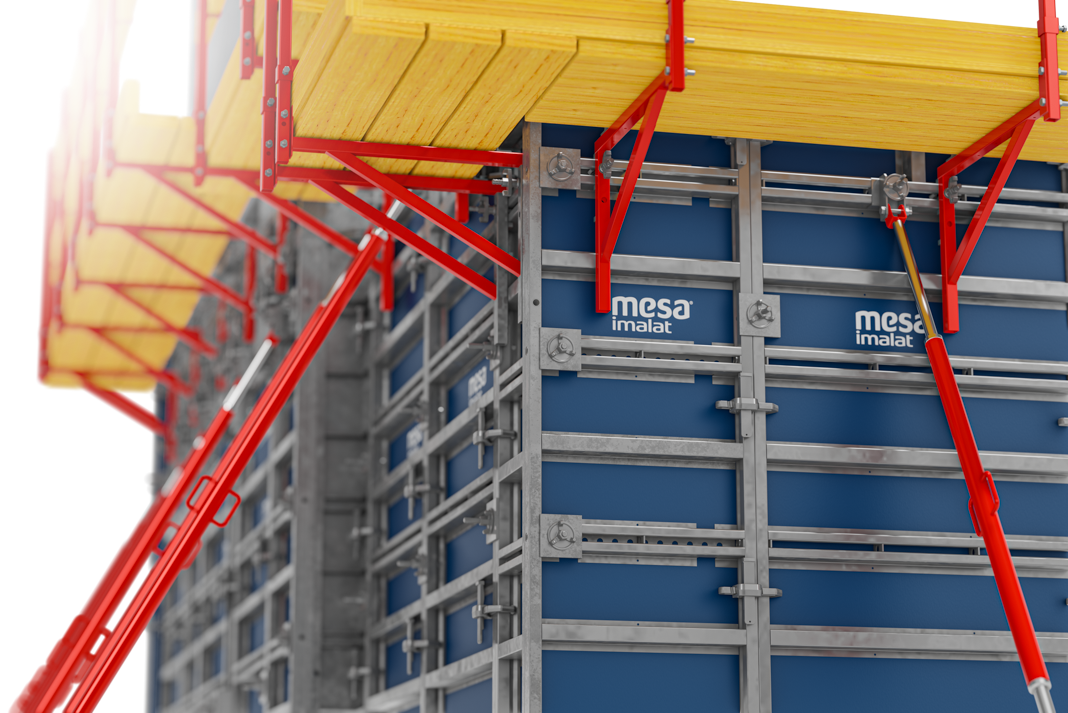

The LOGICA Wall Formwork System is designed for the rapid and practical casting of reinforced concrete structural elements. The system provides high concrete quality, strength, and economical solutions through its new standards. Ease of use, maintenance convenience, and storage advantages are among the prominent features of the system.

The LOGICA Wall Formwork is a crane-operated system. When used with the SAS 15FA tie rod, it can withstand a maximum concrete pressure of 60 kN/m². Its highpressure resistance reduces the concrete pouring time. The specially designed panel frames are manufactured from closed profiles made of high-strength steel.

LOGICA Wall Formwork is available in two types based on the concrete-contact surface material:

LOGICA-P: Plywood surface, thickness: 15 mm

LOGICA-C: Composite-coated plywood surface, thickness: 15 mm

Standard Panel Dimensions:

Height (mm): 3300 / 3000 / 2700 / 1500 / 1200 / 600

Width (mm): 1200 / 900 / 750 / 600 / 450 / 300

The flexible structure of the LOGICA System allows for a wide range of applications in various construction projects.

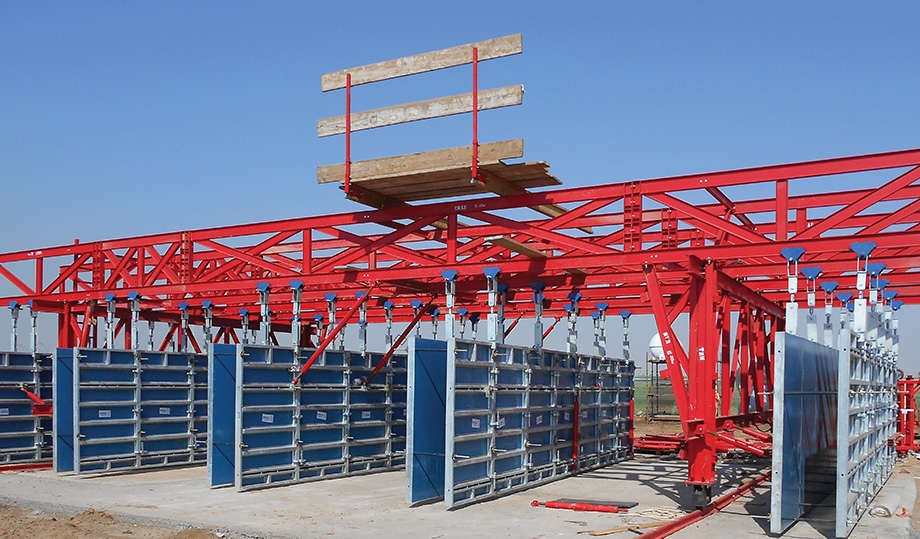

This system is used in both building and infrastructure, as well as industrial projects. Its modular design enables the use of large-surface formwork in all types of projects through simple applications.

Its durable structure also makes it highly suitable for the core walls of high-rise buildings.
